Eco-Worthy 10kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 10000W AIO Inverter

Package Includes:

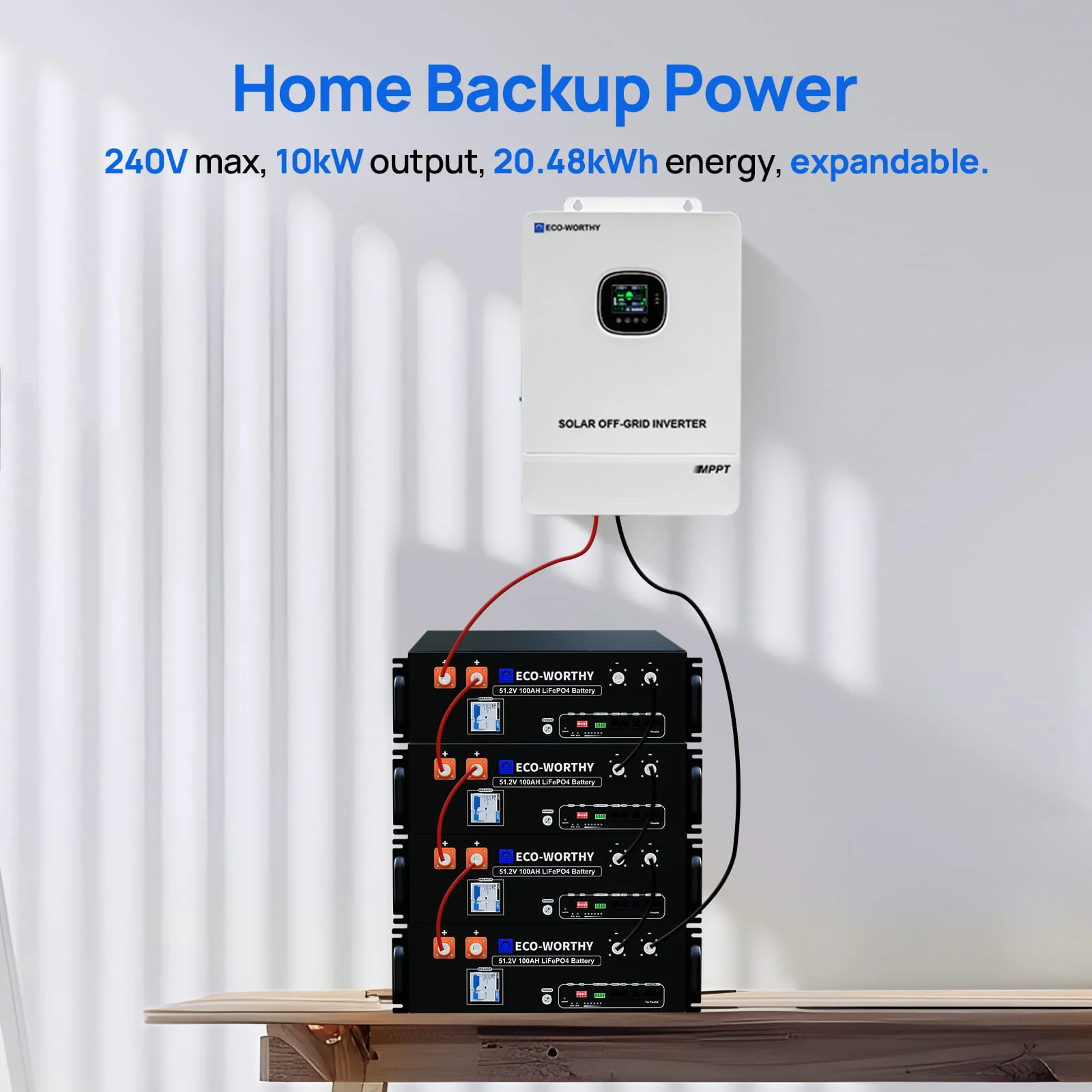

48V 10kW All in One Inverter | 20.48kWh Lithium Battery

4 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 10kW All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
4 Pair of Battery Parallel Cables

48V 10kW All in One Inverter |30.72kWh Lithium Battery

6 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 10kW All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
6 Pairs of Battery Parallel Cables

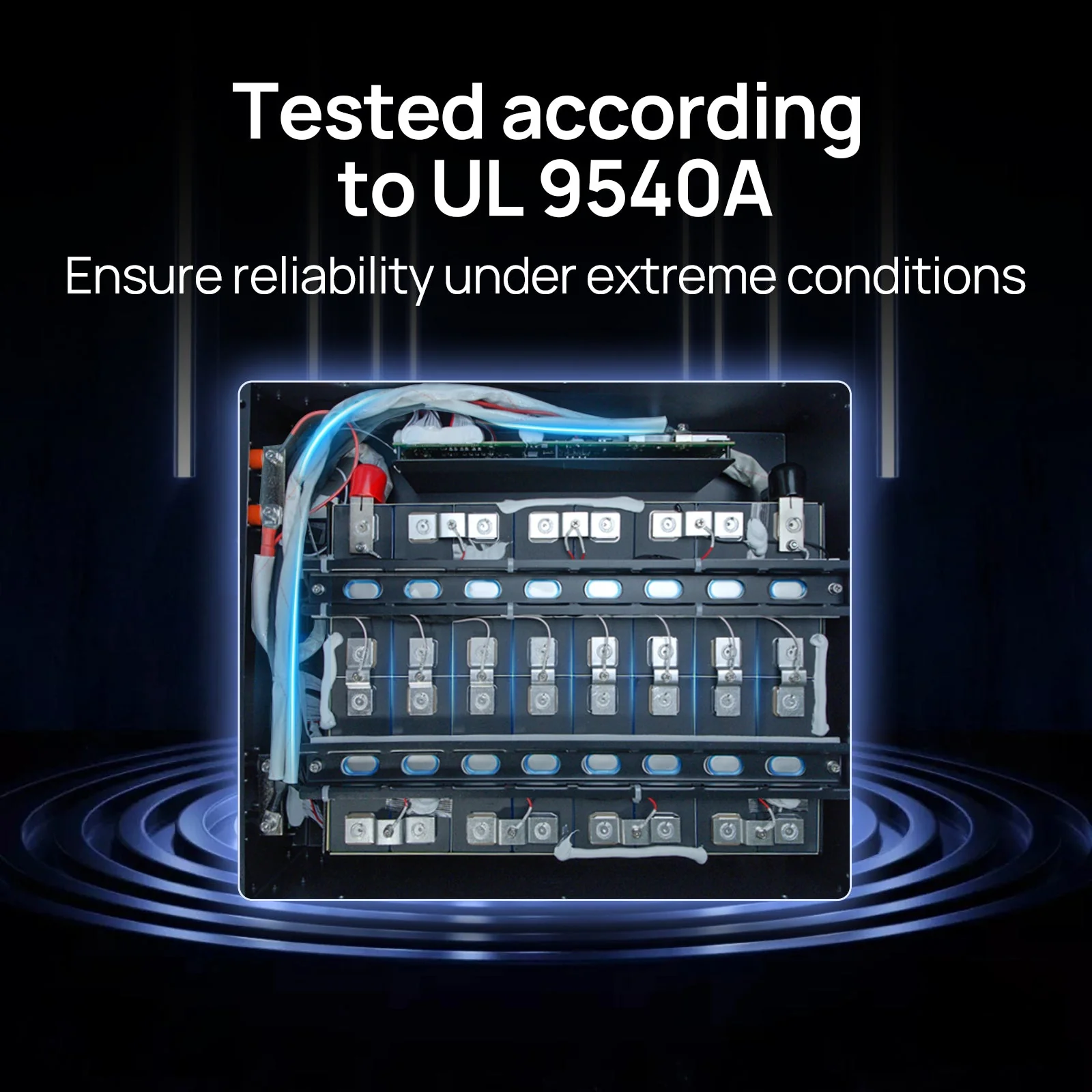

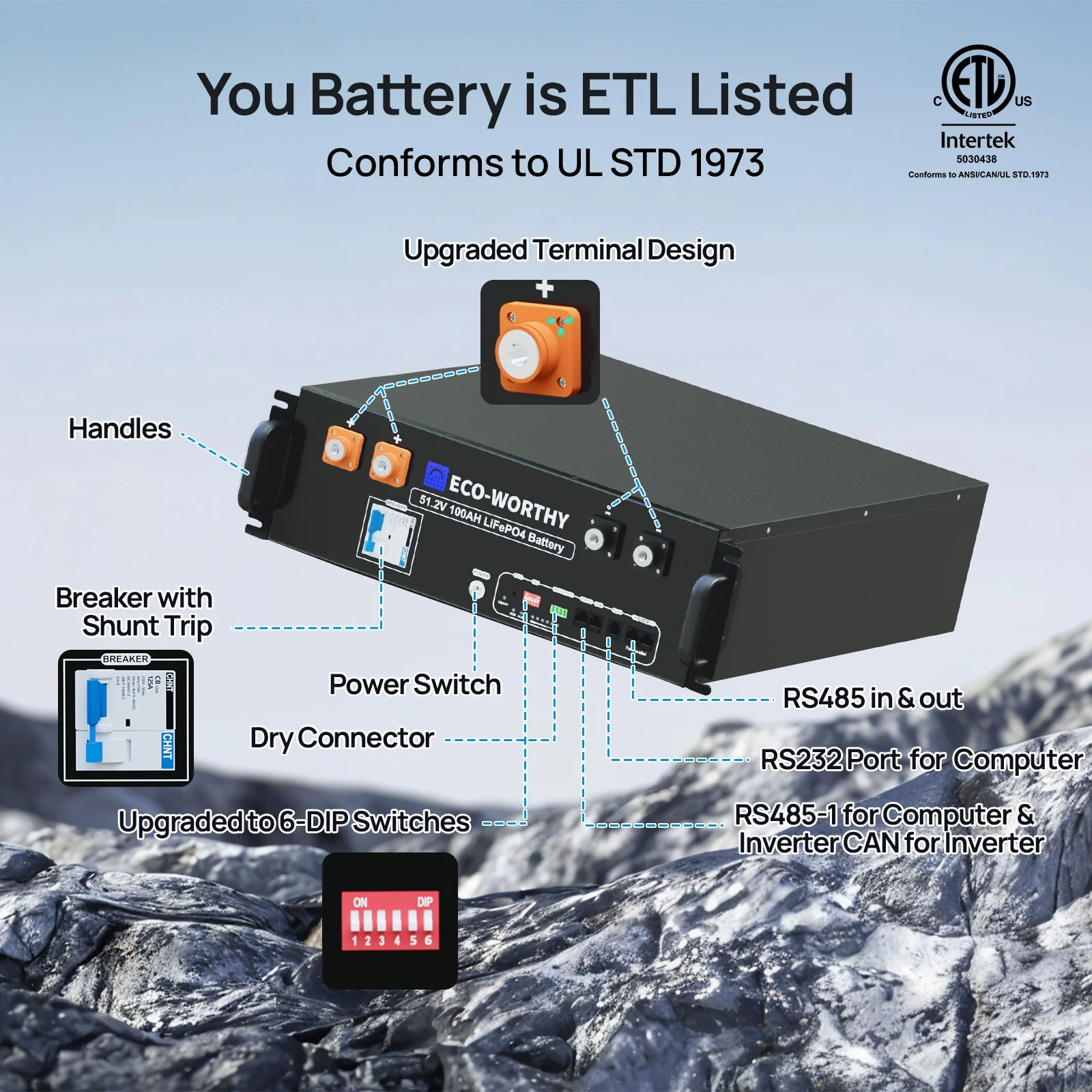

48V(51.2V) 100Ah SERVE RACK LITHIUM BATTERY

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch)
Battery Weight: 47kg(103 lbs)	Each battery comes with a pair of battery parallel cables

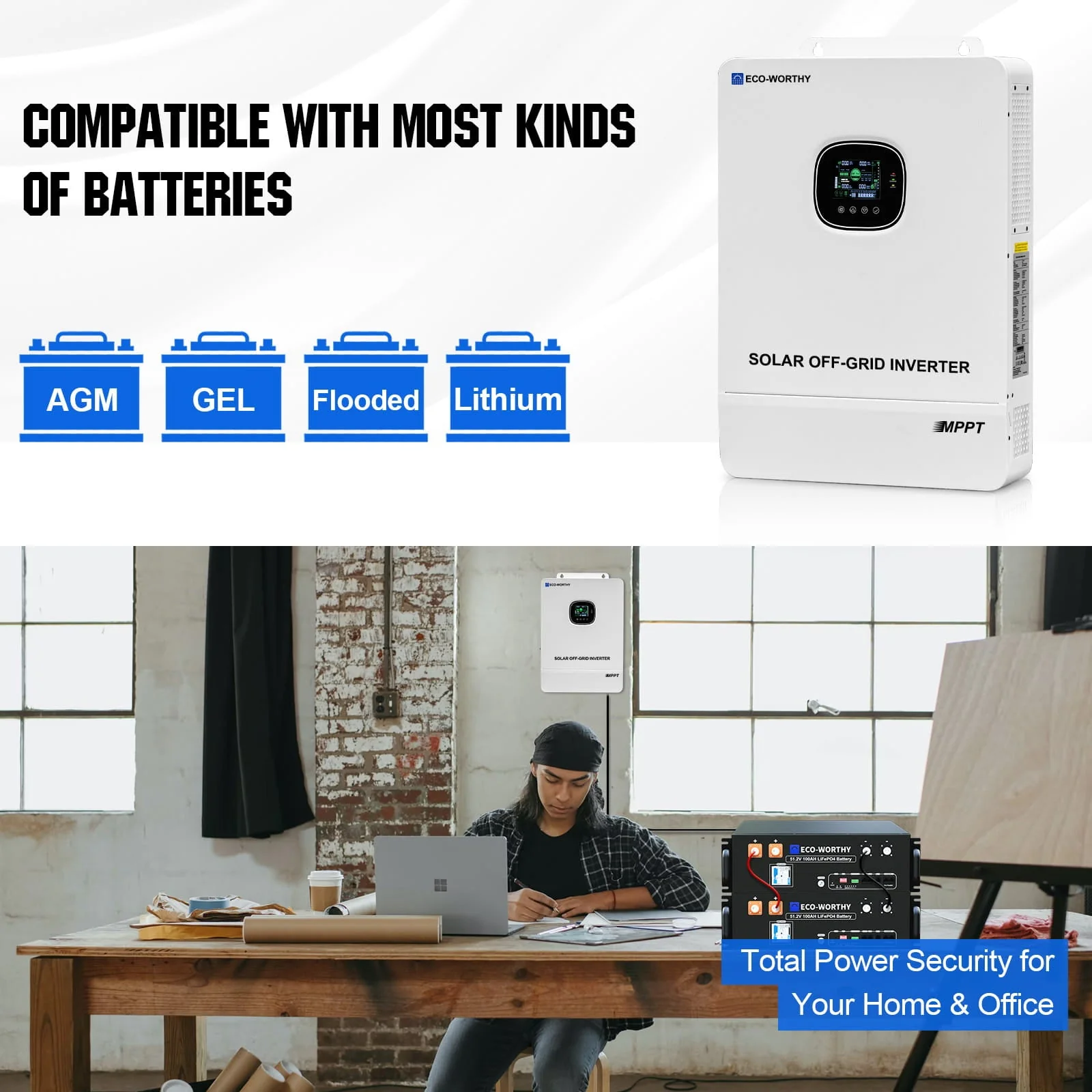

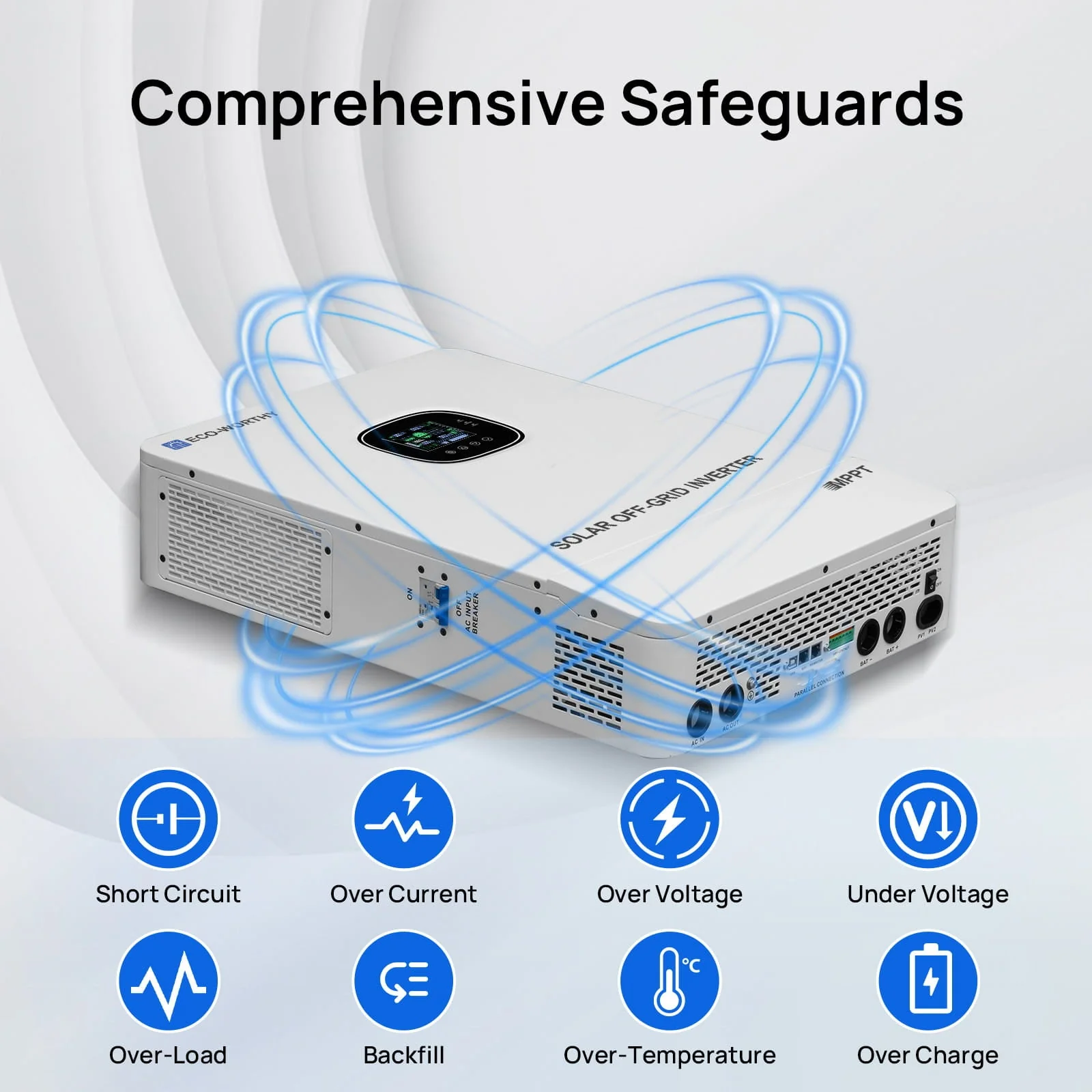

10kW  AIO Split Phase Inverter

Split Phase:	L1/L2/N/PE(L1/L2split)	Single Phase:
AC Output Phase	5.000W/5.000W	AC Output Phase	10000W
ACOutputRatedPhasePower	120Vac/120Vac	AC Output Rated Power	120Vac
AC Output Rated Phase Voltage	41.7A/41.7A	AC Output Rated Voltage	83.3A
AC Output RatedPhaseCurrent	50Hz/60Hz	AC Output Rated Current A	50Hz/60Hz
AC Output Frequency	L1/L2/N/PE(L1/L2 split)	AC Input Phase	L/N/PE(L1/L2parallel)
ACInput Phase	5.000W/5.000W	ACInputRatedPower	10000W
ACInputRatedPhasePower	120Vac/120Vac	ACInput RatedVoltage	120Vac
AC InputRatedPhaseVoltage	63A63A	AC Input Voltage Range	90-140Vac
ACInput MaxPhase Current	50Hzor60Hz	ACInput Max Current	126A
ACInputFrequency	90-140Vac/90-140Vac	AC Input Frequency	50Hz/60Hz
AC Input Phase Voltage Range	120A	AC Input Voltage Range	90-140Vac
AC Charge To Battery Current	L/N/PE(L1/L2parallel)	AC Charge ToBatteryCurrent	120A
		Battery Input:Battery Voltage	48Vdc(40V-60V)
		Max Battery discharge Current	220A
		Max Battery charge Current	200A

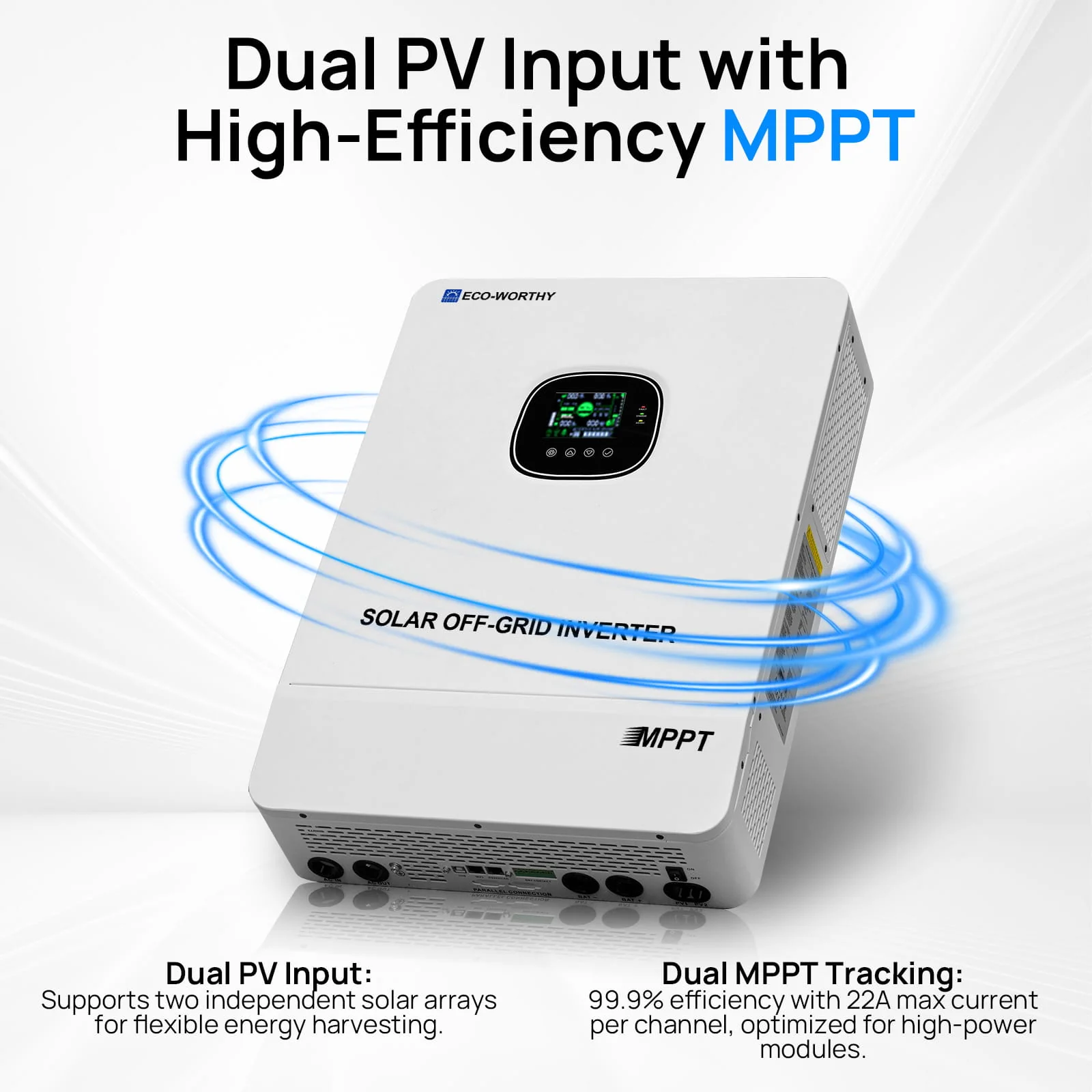

		PV Input
		Number Of PV Circuits	2
		PV input Voltage Range	100Vdc-500Vdc
		MPPT input Range	125Vdc-425Vdc
		Max PV input Current	22A+22A
		Max PV input Power	5500W+5500W
		Max PV Charge To Battery Current	200A
		IP Grade	IP20

Package Includes:

Each battery comes with 1 pair of parallel cables/1 x Screws Bag & Terminal Cover/1 x Grounding wire/1 x Battery-Battery communication Cable. The other package contains a 10kW inverter, which also comes with its own wiring. Generally, there is no need to purchase additional cables.

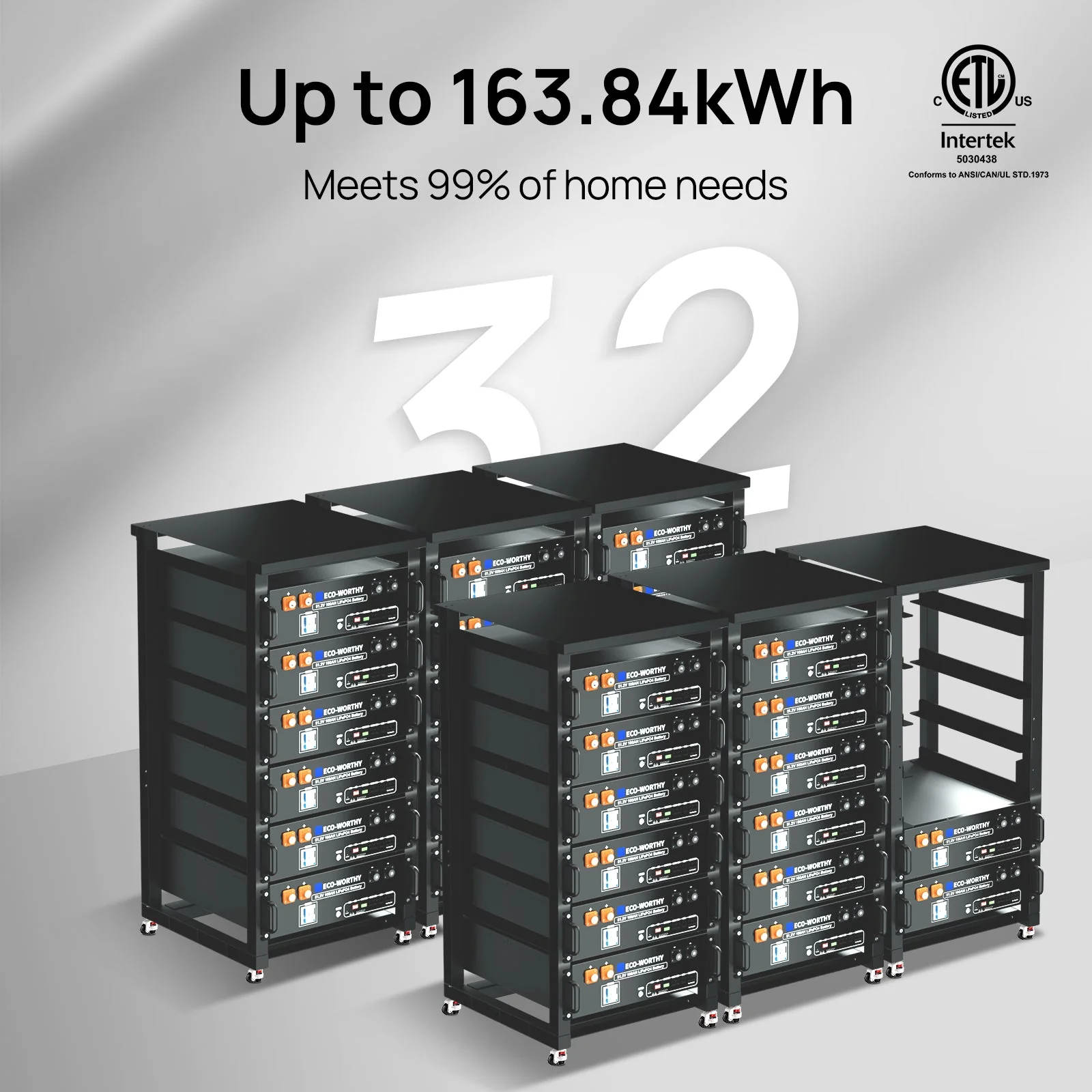

Buy 4 or 6-pack, get a 6-layer battery rack.
